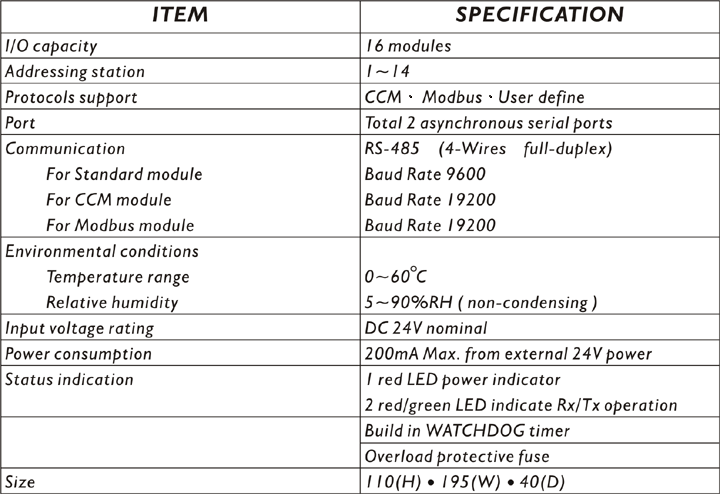

Technical Data

LMC-R Remote Micro Control Module

Type LMC-R Abstract I/O Capacity:16 modules Input Voltage Rating:DC24V nominal 　　　LMC-R is a transmitter between PC/PLC and LMC I/O modules. One output port of PC/PLC can be connected to 0(<16 I/O modules)~14(Max) pcs PCM type LMC-R or one CMM(Modbus)output port connected to one CMM(Modbus) type LMC-R. Regardless the type each controller can be connected to 16 I/O modules. Inside LMC-R and other LMC I/O modules installed the data transmission status indicator and power indicator as well as WATCHDOG & Overload protective fuse. Plug-in screw connector are used on communication and wiring terminal.
