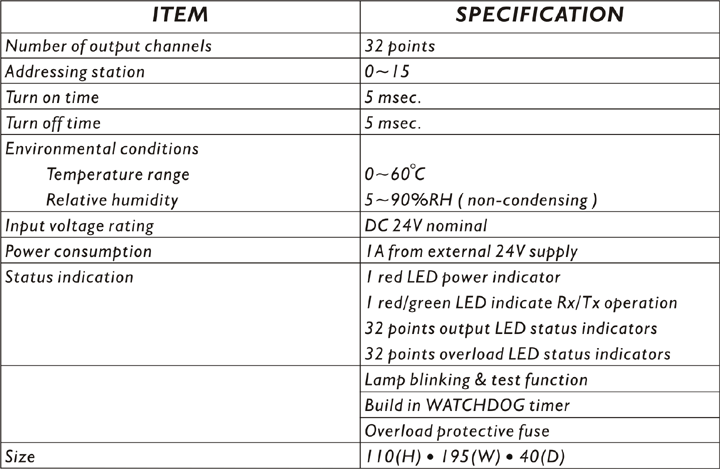

Technical Data

LMC-32DO Smart Digital Output Module

Type LMC-32DO Abstract 32 points digital output module Applicable to input voltage level:DC24V 　　　LMC-32DO is a 32 channels output module having all the virtues of LMC-R and has 2 LED indicators at each output point showing output status and current separately. At output point flat cable plug-in connector are used and because of plug-in technology applied the extension and modification are easy to do. The module can control up to 16 twincolored LEDs. The message from PC/PLC can be interrupted by the message of higher priority. These are synchronous blinking and lamp test.
