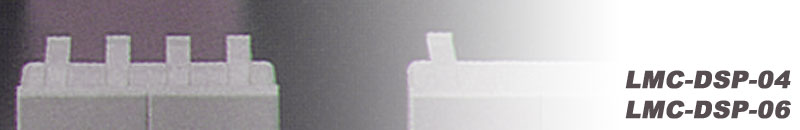

Type LMC-DSP-06
Abstract
6 alphanumeric digit display module
Applicable to input voltage level:DC12V
　　　The LMC-DSP series character display indicator is intended for flush integration into the DL 24 MOSAIC System. The height of the displayed alphanumeric digit is 0.8"(DSP-04) or 0.56"(DSP-06). The decimal point can be set via jumper. Display range : " A~Z " ; " 0~9 "
